TOL-GFS Series Fiber Laser Cutter

Equipment Overview

The TOL-GFS series fiber laser cutter utilizes an imported laser source and features a company-designed gantry-style cast aluminum monolithic beam, offering lightweight construction and rapid acceleration. It represents the fastest laser cutting equipment currently available. Primarily designed for high-speed precision cutting of medium-to-thin metal sheets, the machine employs a high-strength welded cage-type structure that undergoes stress-relief annealing for exceptional rigidity and stability. Imported rack-and-pinion dual-side drive systems deliver high precision and speed, exceeding conventional cutters by over five times. Fiber lasers offer superior beam quality, high brightness, high conversion efficiency, maintenance-free operation, stability, reliability, low running costs, and compact size.

Product Features

1. Fiber laser technology achieves 30% electro-optical conversion efficiency with stable performance and superior beam quality, ensuring processing precision;

2. Fully enclosed optical path design and constant-temperature cooling system guarantee stable laser operation;

3. Imported AC servo motors and transmission systems ensure high-precision, high-speed stable operation;

4. Advanced cutting head control technology with automatic fault alarm protection, rapid response, easy replacement of wear parts, and superior cutting results;

5. Unique piercing gas control technology ensures effective cutting of thick plates;

6. Gantry-type bed structure with an integral cast aluminum beam, offering light weight, minimal deformation, and overall heat treatment after welding for stable operation;

7. Simple operation, easy maintenance, high efficiency, and excellent cost-performance ratio;

8. Fiber optic transmission eliminates the need for mirrors or optical path adjustments; maintenance-free.

Application Areas

Suitable for cutting carbon steel, stainless steel, silicon steel sheets, galvanized sheets, aluminum, silver, copper, titanium, and other metal materials and pipes. Widely used in sheet metal fabrication, high/low-voltage electrical cabinet manufacturing, hardware products, advertising, metal crafts, decoration, mechanical parts, aerospace, military industries, and more.

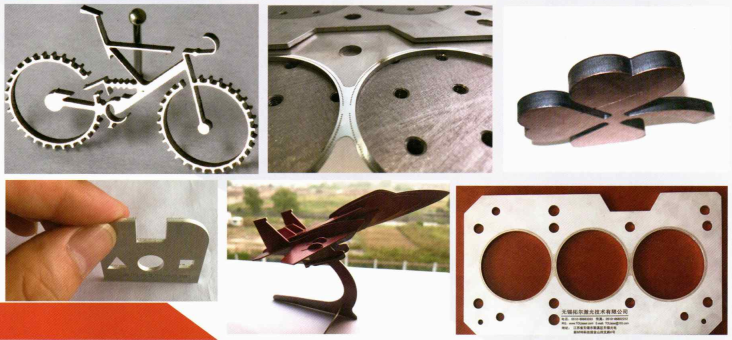

Sample Images

设备简介

TOL-GFS系列光纤切割机选用原装进口激光器，公司自主设计龙门式铸铝整体成型横梁，重量轻，加速度快。是目前速度超快的激光切割设备。设备主要针对中薄板金属材料的快速精密切割。采用高强度整体笼式焊接机床，经过去应力退火，具有很好的刚性、稳定性。进口的齿轮齿条双边驱动，运行精度高、速度快，是普通切割机床的5倍以上。光纤激光器具有高的光束质量、高亮度、高转换率、免维护、稳定可靠、运转成本低及体积小等一系列优点。

产品特征

1、采用光纤激光器，电光转换效率可达30%,性能稳定，光束质量好，保证加工质量；

2、采用全封闭光路设计及恒温冷却系统，更有效保证激光器的稳定工作；

3、采用进口交流伺服电机及传动系统，保证设备的高精度、高速度的稳定运行；

4、配有先进的切割头控制技术，自动故障报警保护，响应速度快，方便更换易损件，切割更完美；

5、具有独特的穿孔气体控制技术，保证厚板的切割工艺；

6、床身采用龙门型结构，整体铸铝成型横梁，重量轻，变形小，焊接后进行整体热处理，运行稳定；

7、操作简单，维护方便，效率高，性价比高；

8、光纤传输，无需反射镜片、无需调整光路；免维护。

应用领域

适用于碳钢、不锈钢、矽钢片、镀锌板、铝、银、铜、钛等金属材料及管材的切割。广泛应用于钣金、高低压电器柜制作、五金制品、广告、金属工艺品、装潢、机械零件、航空航天、军工等行业。

样品图片
