TOL-FB3D-30/50/100 Fiber Laser Marker

Equipment Overview

The 3D Series laser marker utilizes imported core components and features high-speed, high-precision 3D galvanometers. Combined with our proprietary 3D-specific software and control system, it achieves flawless precision processing on any curved workpiece surface without defocusing. It also enables real-time tracking of the engraving focal point, delivering superior processing efficiency and quality compared to traditional 2D markers. This truly realizes comprehensive 3D marking functionality.

Product Features

1. Revolutionizes traditional 2D marking by enabling diverse 3D marking modes on inclined surfaces, stepped surfaces, cylinders, cones, spheres, and extruded surfaces.

2. Achieves an extraordinary large center angle marking capability, reaching up to 117° on cylindrical surfaces.

3. Perfectly reproduces target graphics on workpieces, eliminating distortion like stretching or tilting. Ensures engraved patterns closely match original forms.

4. Eliminates “overlooked” marking boundaries! Consistent, uniform marking results across all workpiece locations.

5. Craftsmanship in every detail—exquisite precision visible from any angle!

6. Simplicity is beauty! Our fully self-developed marking software system is intuitive and easy to learn, delivering true WYSIWYG functionality.

Application Areas

Primarily suited for marking irregular, uneven-height components such as circular, spherical, cylindrical parts, PVC pipes, LED lamp bases, curved steel surfaces, and electrical enclosures.

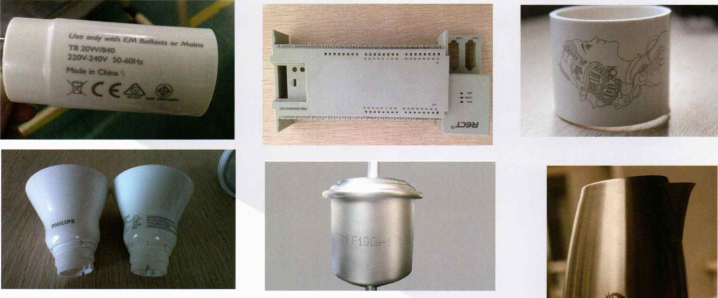

Sample Images

设备简介

3D系列三维激光机采用进口核心器件，配置高速、高精度3D振镜，结合我公司自主开发的3D专用软件及控制系统，完美实现对任意曲面工件的精细加工，无离焦点现象；也可对深度雕刻焦点实时追踪，使加工效率及质量较传统2D打标机更优。真正意义上全面实现3D标记功能。

产品特征

1、颠覆传统的2D打标模式，实现了斜面、段差、圆柱、圆锥、球面，以及拉伸曲面等多种3D标记模式。

2、不可思议的超大圆心角打标，在圆柱体上能够打到117°圆心角的位置。

3、在打标工件上，完美呈现目标打标图形，避免出现拉长、倾斜等变形。让刻印图案更加接近原本形态。

4、让打标边界不再被“忽略”！工件上各个位置的打标效果均匀、一致。

5、细微尽显匠心，无论从任何角度观察，看到的都是精致！

6、简单好用即是美！完全自主开发的打标软件系统，易学易用，所见即所得。

应用领域

主要适用于圆形、球形、圆柱体、PVC水管，LED灯头，曲面钢体，电器外壳等一些不规则不等高的零件打标。

样品图片
